VoiceBox Shield

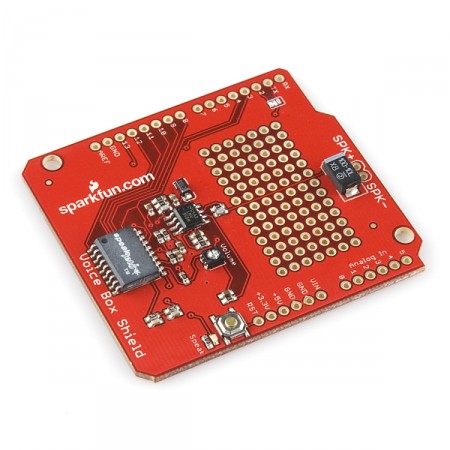

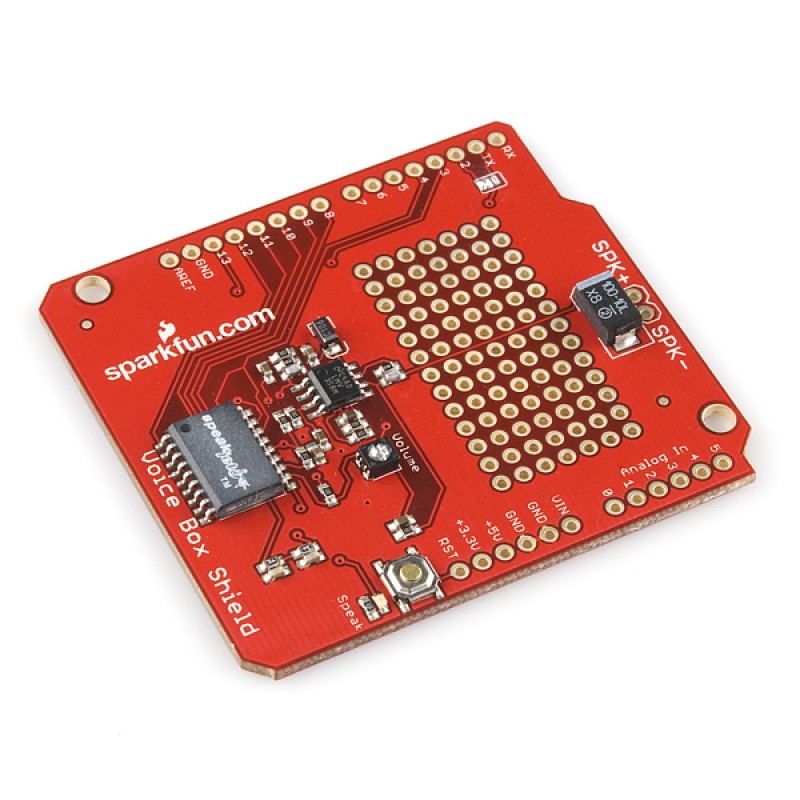

Description: The VoiceBox Shield can be mounted on top of yourArduino USB Board or Pro, to give it access to all capabilities of the SpeakJet voice and sound synthesizer. The Voice Box Shield uses the SpeakJet chip to convert serial commands into a great robot-sounding voice.

Populated on the VoiceBox Shield are the 18-DIP SpeakJet IC and a two stage audio amplifier with a potentiometer to set the gain. You can connect a speaker directly to the 'SPK+/-' pins, and get your Arduino-bot talking with very minimal work!

You can control the SpeakJet through either its serial line, or the eight event input lines which are connected to digital pins 5-12. A 3-way jumper allows you to connect either the software (D2) or hardware (D1) TX pin of the Arduino to the SpeakJet's serial input.

Also included on the shield are a 13x7 grid of 0.1" pitch through-holes for prototyping, the Arduino's reset button. Headers are not included, we recommend the 6 and 8-pin stackable headers.

Documents:

• Schematic
• Example Code
• Listen to the SpeakJet! (YouTube)
• Talking Wireless Server Tutorial
• SpeakJet User's Guide
• SpeakJet Dictionary
• Tutorial on adding the TTS256 text to speech IC to the shield

Replaces: DEV-09624
