8x2 Character LCD - Black Bezel (Parallel Interface)

8x2 Character LCD - Black Bezel (Parallel Interface)

Product Code: 00061
Availability: In Stock
Price: $8.95





Overview

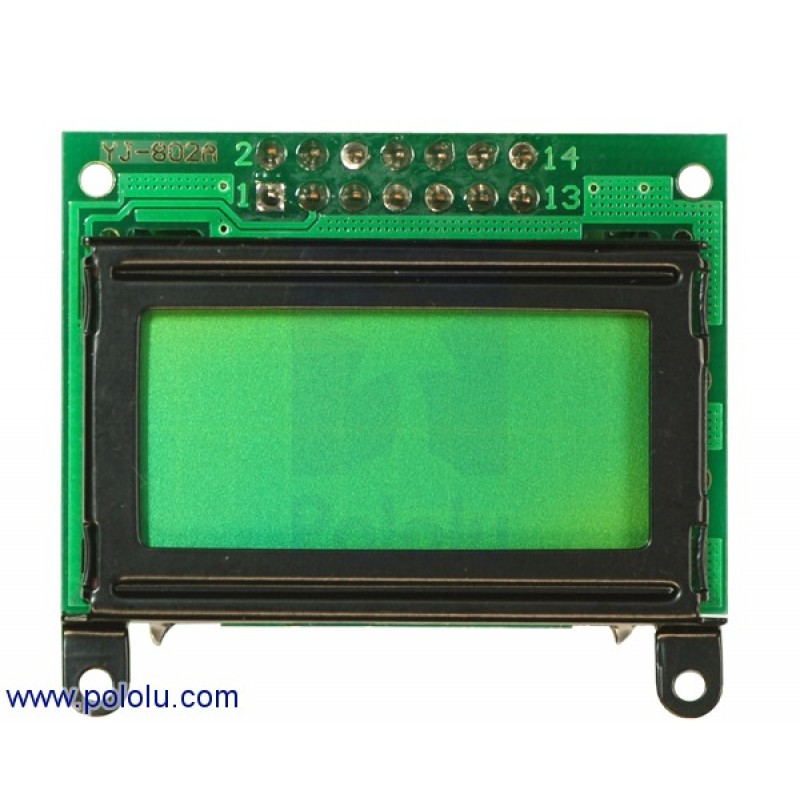

This little 8-character, 2-line parallel liquid crystal display is a generic equivalent of the Optrex DMC-50448N-AAE-AD LCD. It is incorporated into our Orangutan, Orangutan LV-168, and Orangutan SV-328 robot controllers and 3pi robot. It uses the common HD44780 interface, so sample interface code is widely available for a variety of microcontrollers. This is the smallest package we know of for this familiar interface.

You can find sample HD44780 LCD interface code written for a variety of AVR microcontrollers as part of the Pololu AVR library.





Pinout

Pin Symbol Function
1 Vss ground (0 V)
2 Vdd 5 V logic supply voltage
3 Vo contrast adjustment
4 RS H/L register select signal
5 R/W H/L read/write signal
6 E H/L enable signal
7-14 DB0 – DB7 H/L data bus for 4- or 8-bit mode

Note: some of our pictures show pins soldered to the LCD PCB, but this item ships without pins (the pads are standard 0.1" spacing), connectors, or cables.
