Sanyo LB1836M Motor Driver IC

Sanyo LB1836M Motor Driver IC

Product Code: 00063
Availability: Discontinued
Price: $777.00
This product has a minimum quantity of 1000000

Discontinuation notice: This product has been discontinued. Pololu recommends the much newer DRV8835 dual motor driver carrier as a higher-performance alternative.

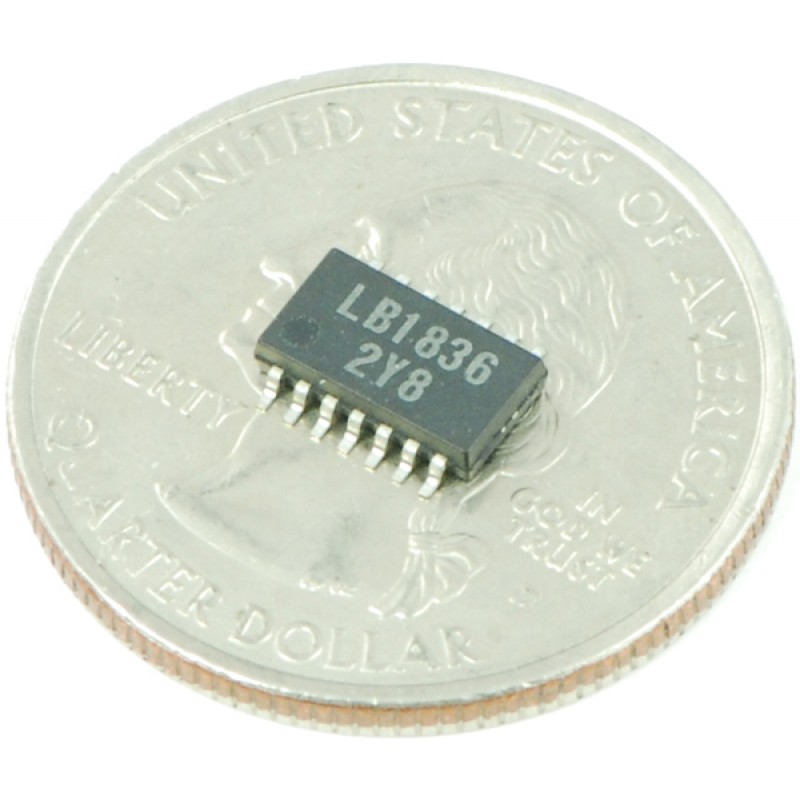

The Sanyo LB1836M is a dual low-voltage H-bridge that can be used for bidirectional control of two DC motors or one bipolar stepper motor. With an operating voltage as low as 2.5 V for logic and 1.8 V for the motor(s), this controller is great for small motors powered from a single Li-based battery or 2-6 NiMH or alkaline cells. The peak current is up to 1 A per channel, but thermal dissipation usually limits the available continuous current to around 0.5 A (this depends on the PCB layout and heat sinking).

The motor driver features thermal shutdown that can help the chip withstand over-current and short-circuit situations. The IC is only available in a surface-mount package, but the 1.0 mm pitch is relatively accessible even with a standard soldering iron, making it an attractive option for those wanting to build small motion control systems.

Key Features and Specificactions

  • 2.5-9.0 V logic operating voltage
  • 1.8-9.0 V motor operating voltage
  • Two independent H-bridges
  • Maximum current: 1 A per channel
  • 14-pin surface mount MFP14S package with 1.0-mm pitch (smaller than SOIC and larger than TSSOP)
