|Maestro family of USB servo controllers: Mini 24, Mini 18, Mini 12, and Micro 6.|
The Mini Maestros are the newest of Pololu’s second-generation USB servo controllers, offering more channels and features than the smaller six-channel Micro Maestro. The Mini Maestros are available in three sizes, and they can be purchased fully assembled or as partial kits:
The Mini Maestros are highly versatile (and compact) servo controllers and general-purpose I/O boards. They support three control methods: USB for direct connection to a computer, TTL serial for use with embedded systems, and internal scripting for self-contained, host controller-free applications. The channels can be configured as servo outputs for use with radio control (RC) servos or electronic speed controls (ESCs), as digital outputs, or as analog/digital inputs. The extremely precise, high-resolution servo pulses have a jitter of less than 200 ns, making these servo controllers well suited for high-performance applications such as robotics and animatronics, and built-in speed and acceleration control for each channel make it easy to achieve smooth, seamless movements without requiring the control source to constantly compute and stream intermediate position updates to the Mini Maestros. The Mini Maestros also feature configurable pulse rates from 1 to 333 Hz and can generate a wide range of pulses, allowing maximum responsiveness and range from modern servos. Units can be daisy-chained with additional Pololu servo and motor controllers on a single serial line.
|The Status tab in the Maestro Control Center.|
A free configuration and control program is available for Windows and Linux, making it simple to configure and test the device over USB, create sequences of servo movements for animatronics or walking robots, and write, step through, and run scripts stored in the servo controller. The Mini Maestros’ 8 KB of internal script memory allows storage of up to approximately 3000 servo positions that can be automatically played back without any computer or external microcontroller connected.
Because the Mini Maestros’ channels can also be used as general-purpose digital outputs and analog or digital inputs, they provide an easy way to read sensors and control peripherals directly from a PC over USB, and these channels can be used with the scripting system to enable creation of self-contained animatronic displays that respond to external stimuli and trigger additional events beyond just moving servos.

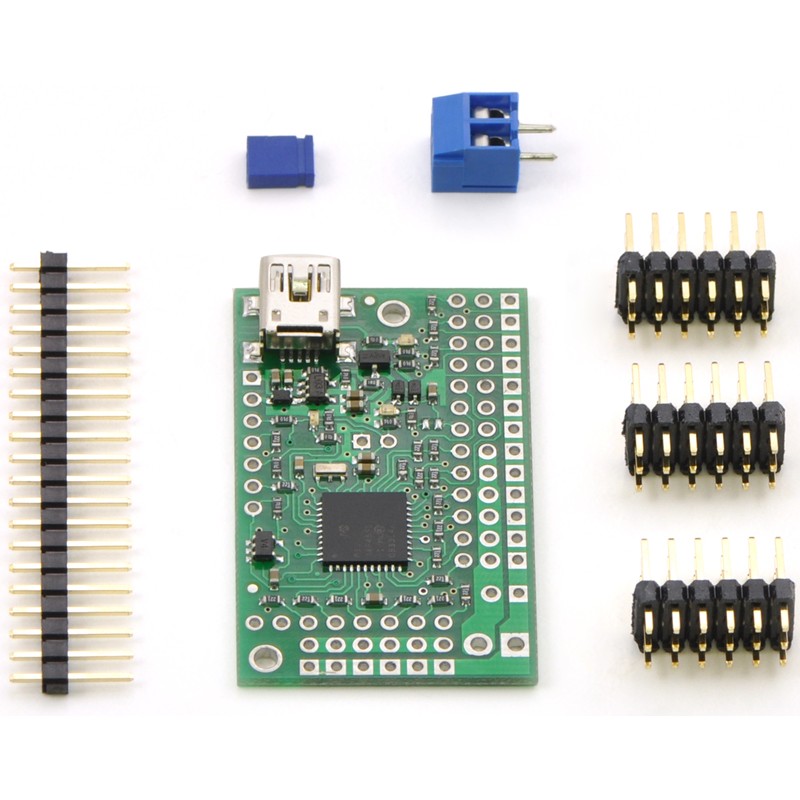

The fully assembled versions of the Mini Maestro ship with 0.1? male header pins installed as shown in the respective product pictures. The partial kit versions ship with these header pins included but unsoldered, which allows the use of different gender connectors or wires to be soldered directly to the pads for lighter, more compact installations. The Micro and Mini Maestros have 0.086? diameter mounting holes that work with #2 and M2 screws.
|Micro Maestro 6-channel USB servo controller (fully assembled) controlling three servos.|
|The Channel Settings tab in the Maestro Control Center.|
|Micro Maestro||Mini Maestro 12||Mini Maestro 18||Mini Maestro 24|
|Analog input channels:||6||12||12||12|
|Digital input channels:||0||0||6||12|
|Width:||0.85" (2.16 cm)||1.10" (2.79 cm)||1.10" (2.79 cm)||1.10" (2.79 cm)|
|Length:||1.20" (3.05 cm)||1.42" (3.61 cm)||1.80" (4.57 cm)||2.30" (5.84 cm)|
|Weight(1):||3.0 g||4.2 g||4.9 g||6.0 g|
|Configurable pulse rate(2):||33–100 Hz||1–333 Hz||1–333 Hz||1–333 Hz|
|Pulse range(2):||64–3280 μs||64–4080 μs||64–4080 μs||64–4080 μs|
|Script size(3):||1 KB||8 KB||8 KB||8 KB|
1 This is the weight of the board without header pins or terminal blocks.
2 The available pulse rate and range depend on each other and factors such as baud rate and number of channels used. See the Maestro User’s Guide for details.
3 The user script system is more powerful on the Mini Maestro than on the Micro Maestro. See See the Maestro User’s Guide for details.
|Micro Maestro as the brains of a tiny hexapod robot.|
An example setup using a Micro Maestro to control a ShiftBar and Satellite LED Module is shown in the picture below and one of the videos above. Maestro source code to control a ShiftBar or ShiftBrite is available in the Example scripts section of the Maestro User’s guide.
|Connecting the Micro Maestro to a chain of ShiftBars. A single 12V supply powers all of the devices.|
