Pololu Ball Caster with 3/8" Metal Ball

Pololu Ball Caster with 3/8" Metal Ball

Product Code: 00116
Availability: In Stock
Price: $1.99

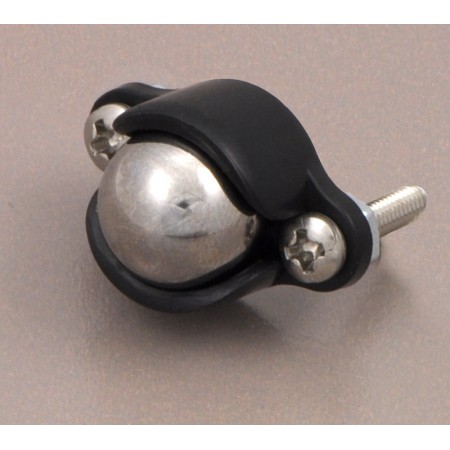

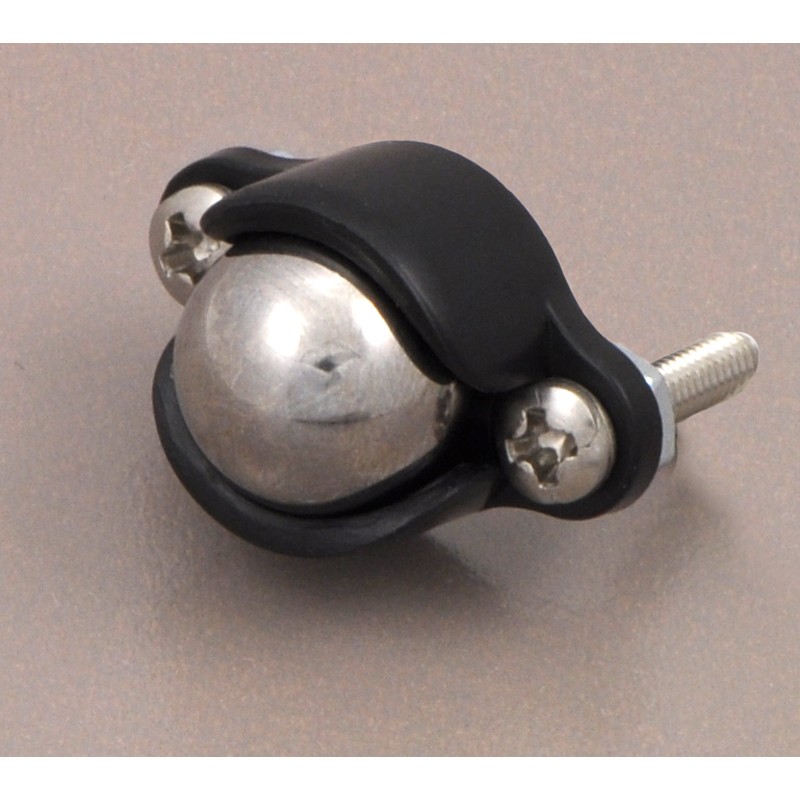

Pololu ball caster with 3/8" metal ball with included hardware.



Overview

This ball caster kit includes a black ABS housing, a 3/8" diameter metal ball, two spacers (1/16" and 1/8" thick), and two #2 screw sets. The total height of the ball caster, 0.4", can be increased to about 0.6" using the included spacers. The two included #2 screws can be used to mount the ball caster to your chassis (the distance between the screw holes is 0.53").

Note that Pololu ball casters are designed for small robots; they are not intended to bear more than a few pounds. With more weight than this, friction between the ball and the housing will probably keep it from rolling well.

Comparison of Pololu ball casters



Pololu ball caster
ball diameter
height with
no spacers
distance
between
screw holes
weight with
no spacers
or screws
0.40" 0.53" 0.03 oz
3/8" metal-ball
0.40" 0.53" 0.14 oz
0.53" 0.58" 0.07 oz
0.53" 0.58" 0.32 oz
0.91" 0.24" 0.25 oz
0.83" 0.61" 1.05 oz
1.10" 0.70" 0.36 oz
