Micro Metal Gearmotor Bracket Pair - White

Micro Metal Gearmotor Bracket Pair - White

Product Code: 00111
Availability: In Stock
Price: $4.99

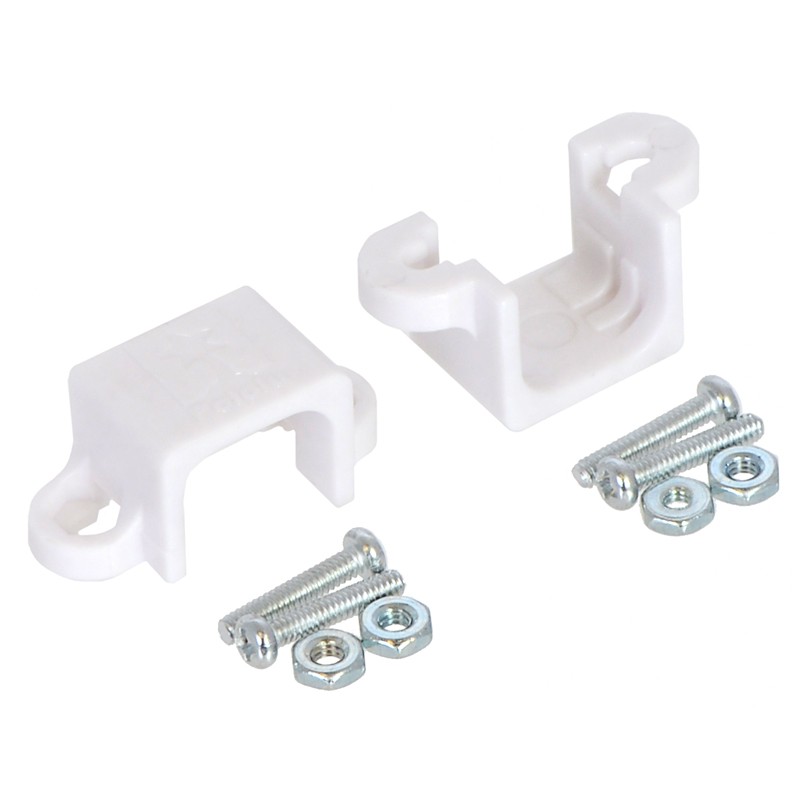

These plastic mounting brackets allow you to easily and securely mount the ubiquitous 10 mm x 12 mm x 26 mm metal gearhead motors first popularized by Sanyo’s 12GN series (e.g. NA1S…NA3S), such as micro metal gearmotors and the Solarbotics mini metal gear motors (GM12a, GM13a, GM14a, and GM18). We offer these brackets in black plastic and white plastic, and we offer an extended version that might work better for particular applications.

Four #2-56×7/16" screws and four nuts are included.

Micro metal gearmotor mounted to a piece of acrylic with black mounting bracket version.
Micro metal gearmotor mounted to a piece of acrylic with black mounting bracket version.

These brackets have mounting holes that are very close to the output shaft end of the motor, which could cause mounting difficulties if your wheels have recessed hubs like the Pololu Wheel 42×19 mm. For such applications we recommend the extended version of this bracket.

Note: This bracket also works with the 1000:1 micro metal gearmotors, but because of its longer gearbox, it does not fully enclose the exposed gears the way it does on the other micro metal gearmotors.

Dimensions

Weight: 0.7 g1

General specifications

Color: white

Notes:

1
For a single bracket only (no screws or nuts).

File downloads

3D model of a micro metal gearmotor with extended motor shaft and a #1086 bracket (4MB step)
3D model of a micro metal gearmotor with extended motor shaft and a #1086 bracket (or #989 bracket, which is just a black version of the #1086).
3D model of a micro metal gearmotor and a #1086 bracket (4MB step)
3D model of a micro metal gearmotor and a #1086 bracket (or #989 bracket, which is just a black version of the #1086).
