High-Torque Servo with Metal Gears (Generic)
 Click on image to enlarge |
|
This standard-size generic servo can deliver quite a bit of torque using a geartrain comprised entirely of metal gears. Servo horns and associated hardware are included.
Key specs at 6 V: 0.16 sec/60°, 140 oz-in (10.2 kg-cm), 56 g (2.0 oz)
 |
This standard-size servo has all-metal gears and can deliver the kind of torque usually found in larger or more expensive servos, making it appropriate for compact or low-cost robot mechanisms that require a lot of power.
It measures 41.3 x 20.3 x 38.7 mm (1.63" x 0.80" x 1.52") and weighs 56 g (02.0 oz) without its 30cm (12") lead. The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible.
 |

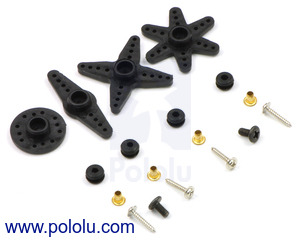

The servo ships with the hardware shown below.
 |
The servo is intended for operation from 4.8 – 6.0 V, meaning it should be powered with a 4- or 5-cell NiMH battery pack.

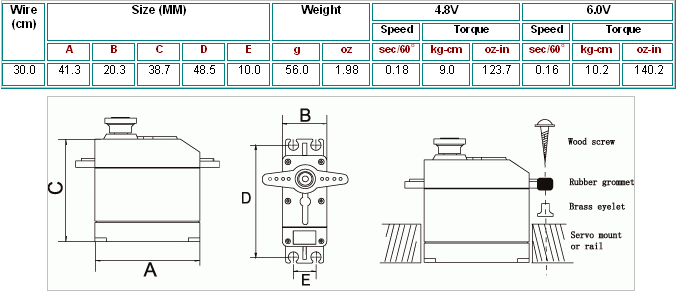

Dimensions
| Size: | 41.3 x 20.3 x 38.7 mm |
|---|---|
| Weight: | 56 g |
General specifications
| Digital?: | N |
|---|---|
| Speed @ 6V: | 0.16 sec/60° |
| Stall torque @ 6V: | 140 oz·in |
| Speed @ 4.8V: | 0.18 sec/60° |
| Stall torque @ 4.8V: | 124 oz·in |
| Hardware included?: | Y |
