Power HD Mini Digital Servo HD-1810MG
 Click on image to enlarge |
|

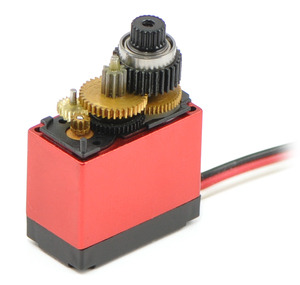

The HD-1810MG digital servo from Power HD is a miniature servo with digital control electronics for increased performance. The output shaft is supported by a ball bearing, and the gear train and part of the case are metal for increased durability. Servo horns and associated hardware are included.
Key specs at 6 V: 0.13 sec/60°, 54 oz-in (3.9 kg-cm), 16 g

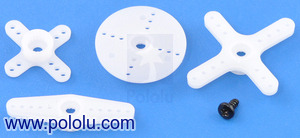

The HD-1810MG is a great high-performance for small mechanisms. Digital electronics coupled with mostly metal gears and a ball bearing give this servo a distinct edge over similarly sized servos. The picture below shows the hardware included with this servo.
|
|
Though not shown in the above picture, two mounting screws are also included.
Dimensions
| Size: | 22.8 x 12 x 29.4 mm |
|---|---|
| Weight: | 16 g |
General specifications
| Digital?: | Y |
|---|---|
| Speed @ 6V: | 0.13 sec/60° |
| Stall torque @ 6V: | 3.9 kg·cm |
| Speed @ 4.8V: | 0.16 sec/60° |
| Stall torque @ 4.8V: | 3.1 kg·cm |
| Lead length: | 10 in |
| Hardware included?: |
Y |
