Power HD Mini Servo HD-1160A

The HD-1160A is a great general-purpose miniature analog servo from Power HD. Servo horns and associated hardware are included.

Key specs at 6 V: 0.11 sec/60°, 37 oz-in (2.7 kg-cm), 16 g.

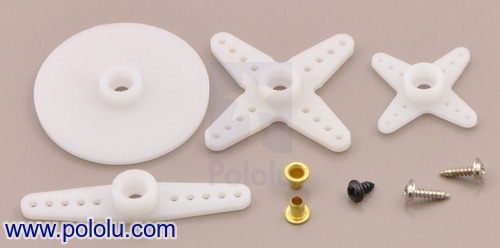

The HD-1160A a great general-purpose actuator for small mechanisms that require a bit more torque than you can get out of micro and sub-micro servos. The picture below shows the hardware included with this servo. You can find more information about this servo below and in its datasheet (171k pdf).

Note: The disk servo horn is no longer included with this servo.

Dimensions

General specifications

File downloads

FAQs

Datasheet for the Power HD mini servo HD-1160A (171k pdf)





What are the three wires coming out of my servo?

Most standard radio control servos (and all RC servos we sell) have three wires, each a different color. Usually, they are either black, red, and white, or they are brown, red, and orange/yellow:



• brown or black = ground (GND, battery negative terminal)
• red = servo power (Vservo, battery positive terminal)
• orange, yellow, or white = servo control signal line

Please check the specs for your servo to determine the proper power supply voltage, and please take care to plug the servo into your device in the proper orientation (plugging it in backwards could break the servo or your device).
