Power HD Sub-Micro Digital Servo DS65HB
 Click on image to enlarge |
|
The DS65HB digital servo from Power HD is a sub-micro servo with digital control electronics for increased performance; it is the smallest digital servo and strongest sub-micro servo we carry, making it a great tiny actuator for small robot mechanisms. Servo horns and associated hardware are included.
Key specs at 6 V: 0.07 sec/60°, 21 oz-in (1.5 kg-cm), 6.5 g.

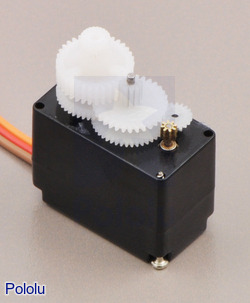

The HD-DS65HB is a great high-performance, fast actuator for small mechanisms. It has digital electronics for improved performance, and it is the smallest digital servo and strongest sub-micro servo we carry. The pictures below show the servo’s gear train and the hardware included with this servo.
|
|
This servo also goes by the part numbers D65HB and HD-D65HB.
Dimensions
| Size: | 20.8 x 11.0 x 20.0 mm |
|---|---|
| Weight: | 6.5 g |
General specifications
| Digital?: | Y |
|---|---|
| Speed @ 6V: | 0.07 sec/60° |
| Stall torque @ 6V: | 1.5 kg·cm |
| Speed @ 4.8V: | 0.09 sec/60° |
| Stall torque @ 4.8V: | 1.3 kg·cm |
| Lead length: | 7 in |
| Hardware included?: |
Y |
